100mm f/1.2 Athermalized

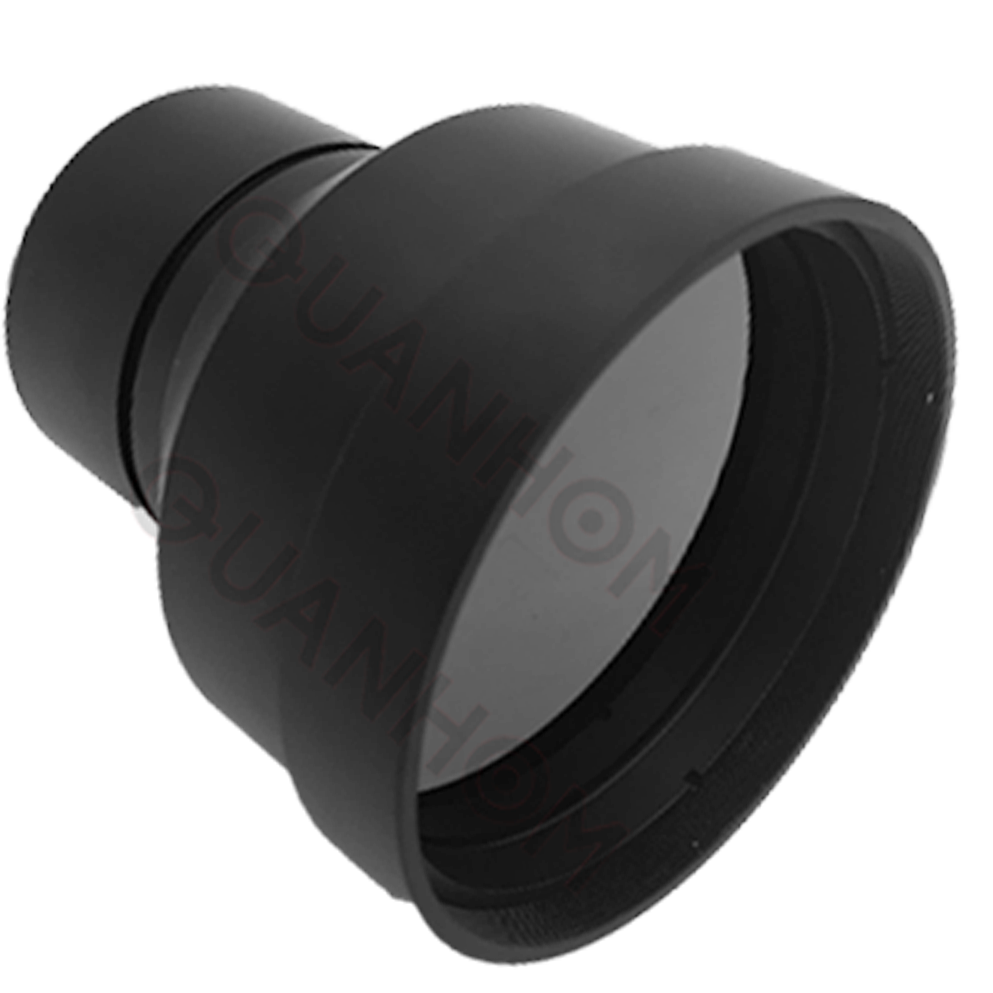

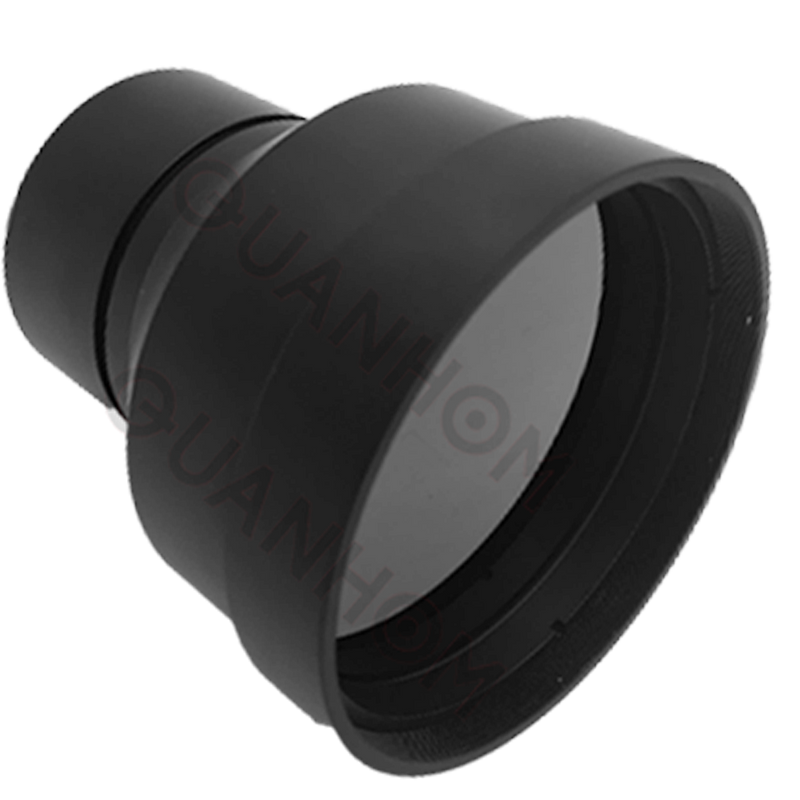

GLA10012D 100mm f1.2 Athermalized Lens
Optical | |
Focal Length | 100mm |
F/# | 1.2 |
Wavelength | 8-12μm |
Format | Ø14 |
Mechanical | |
Interface | Thread |
Focus Mechanism | Fixed Athermalized |

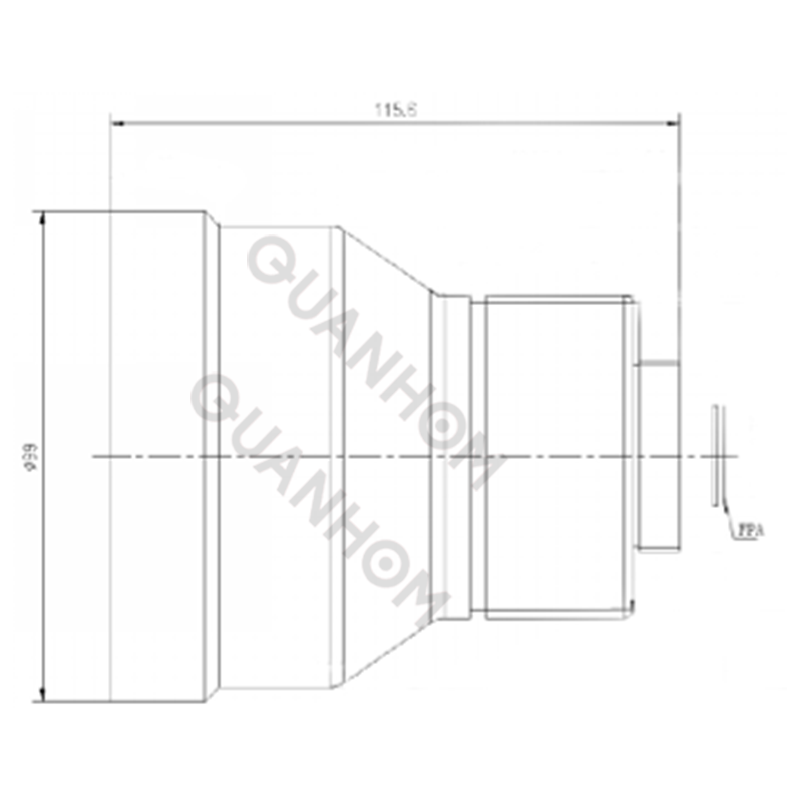

Dimensions (mm) | Ø99×115.6 |
Weight | 693g |
Environmental | |
Sealing | IP67 |
Operating Temperature | -40°C to +80°C |
Storage Temperature | -50°C to +85°C |
External Coating | DLC |
Remark:M.B.F.L: Mechanical Back Focal Length
GLA10012D 100mm f1.2 Athermalized Lens
Optical | |
Focal Length | 100mm |
F/# | 1.2 |
Wavelength | 8-12μm |
Format | Ø14 |
Mechanical | |
Interface | Thread |
Focus Mechanism | Fixed Athermalized |
Dimensions (mm) | Ø99×115.6 |
Weight | 693g |
Environmental | |
Sealing | IP67 |
Operating Temperature | -40°C to +80°C |
Storage Temperature | -50°C to +85°C |
External Coating | DLC |
Remark:M.B.F.L: Mechanical Back Focal Length
