18/20.9/25mm

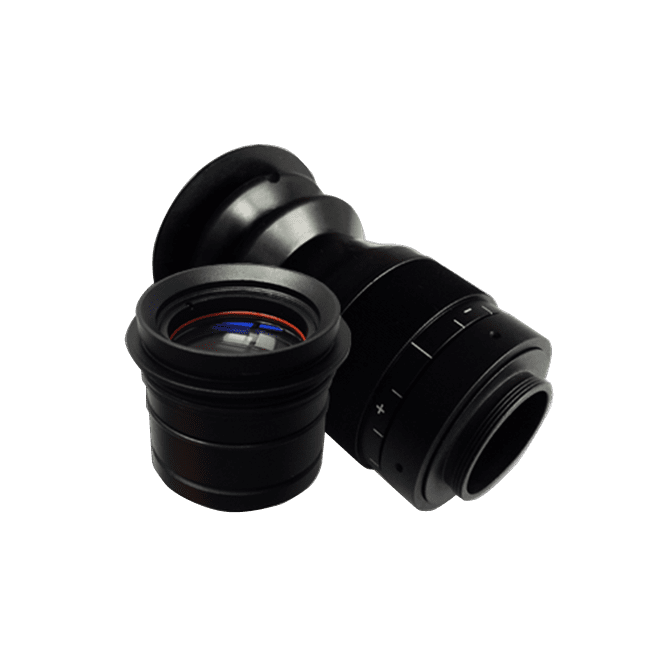

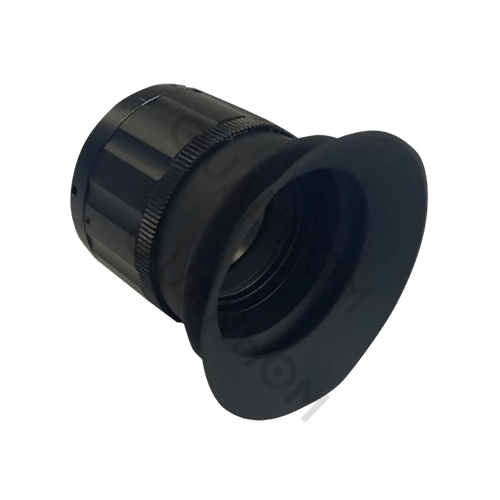

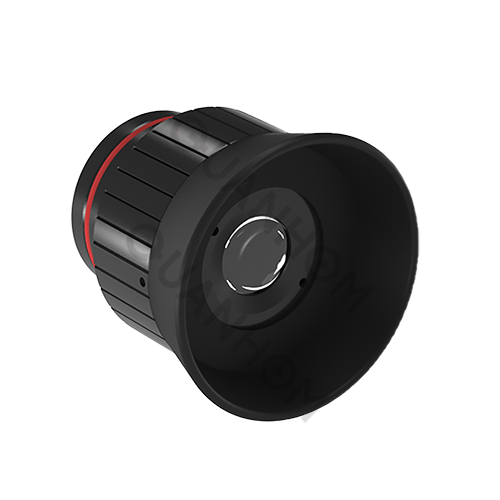

GE14/ GE18 / GE21 / GE25 / GE25E2
Accessories - Eyepiece
Features
Ø Large Magnifications for Various OLED from 0.39” to 0.6”
Ø Light Weight
Ø Long Eye-relief Selections
Ø Rugged Design
Ø Customize Available
Ø Housing, Wheels Replaceable

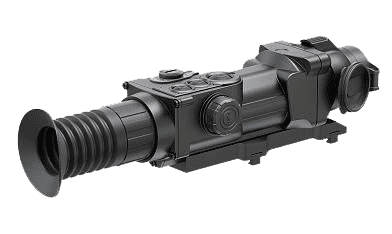

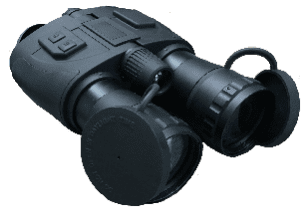

Applications
| Technical Specifications | |||||
| Model Number | GE14 | GE18 | GE21 | GE25 | GE25E2 |
| Focal Length | 14mm | 18mm | 20.8mm | 25mm | 25mm |
| Magnification | 18X | 10X | 12X | 10X | 10X |
| Eye relief | 16mm | 16.5mm | 25mm | 45mm | 50mm |
| Pupil Diameter | 7mm | 7mm | 8mm | 8mm | 8mm |
| Image Size | 0.41 ” | 0.5 ” | 0.61 ” | 0.6 ” | 0.61 ” |
| Diopter | +/-7 SD | +/-5 SD | +/-5 SD | +/-5 SD | -5/+4 SD |
| Back work distance | / | 3.2mm | 1.5mm | 6mm | / |
| Weight | <30g | <60g | <103g | <143g | <183g |
