100mm f/1.5 Athermalized

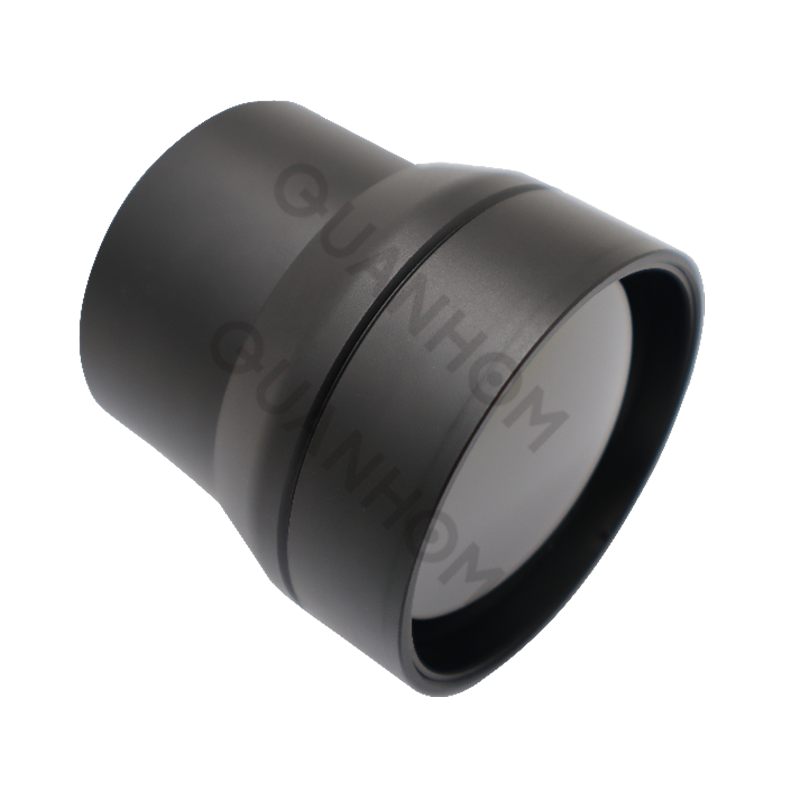

GLA10015ZD 100mm f1.5 Athermalized Lens
Optical | |
Focal Length | 100mm |
F/# | 1.5 |
Wavelength | 8-12μm |
Mechanical | |
Interface | Thread |
Focus Mechanism | Fixed Athermalized |

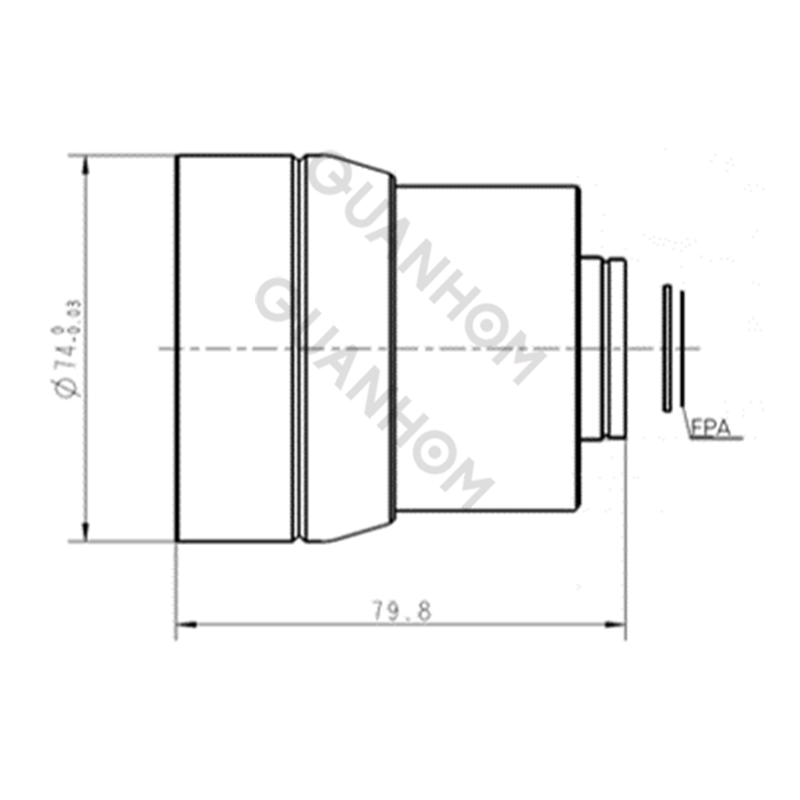

Dimensions (mm) | Ø74×79.8 |
Weight | 350g |
Environmental | |
Sealing | IP67 |
Operating Temperature | -40°C to +80°C |
Storage Temperature | -50°C to +85°C |
External Coating | DLC |
Remark:M.B.F.L: Mechanical Back Focal Length
