45mm f/1.2 Athermalized
GLA4512ZA 45mm f1.2 Athermalized Lens
Optical | |
Focal Length | 45mm |
F/# Average Transmittance | 1.2 ≥90% |
Wavelength | 8-12μm |
Mechanical | |
Interface | Thread |
Focus Mechanism | Fixed Athermalized |

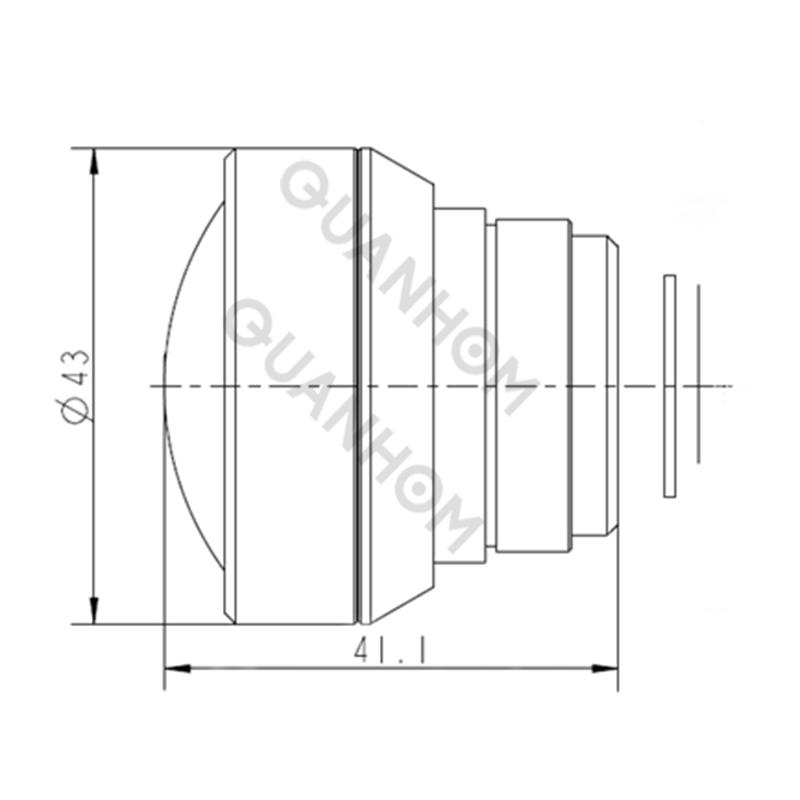

Dimensions (mm) | Ø43×41.1 |
Weight | ＜100g |
Environmental | |
Sealing | IP67 |
Operating Temperature | -40°C to +80°C |
External Coating | AR |
