Athermalized Lens - GLA06710ZSA

6.7mm f/1.0

Infrared Lens(IR Lens) - LWIR Lens - Athermalized Lens

Tel:+86(0)571-88612325 Fax:+86(0)571-88612503

E-mail:info@quanhom.com Skype: irtekz
Availability:
Quantity:
Inquire Add to Basket

  • 6.7mm f/1.0 Athermalized

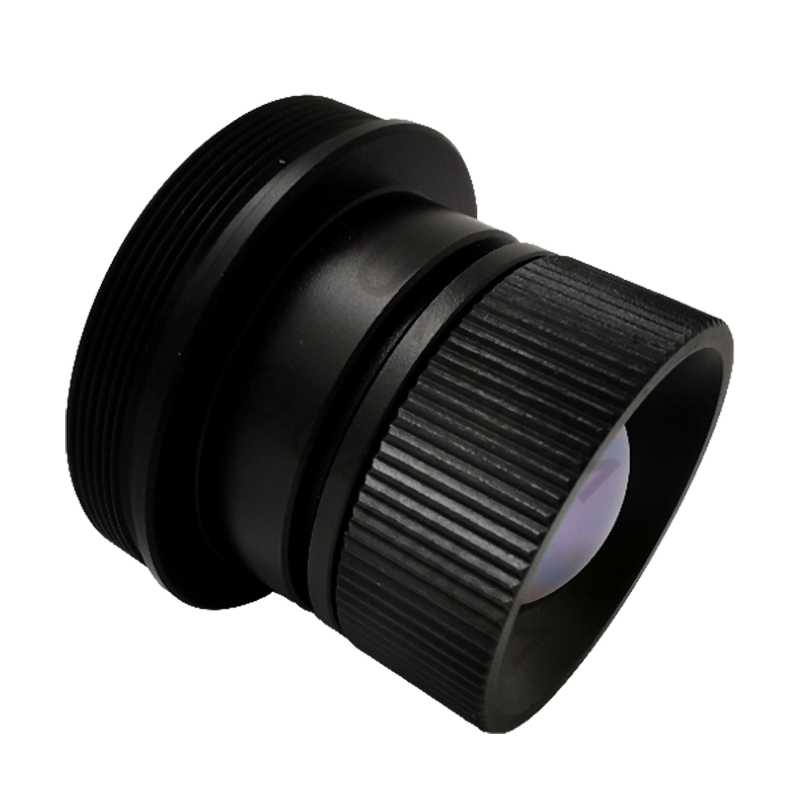

GLA06710ZSA 6.7mm f/1.0 Athermalized Lens



GLA06710ZSA-3

Optical

Focal Length

6.7mm

F/#

1.0

Wavelength

8-12μm

Mechanical

Interface

Thread

Focus Mechanism

Fixed Athermalized

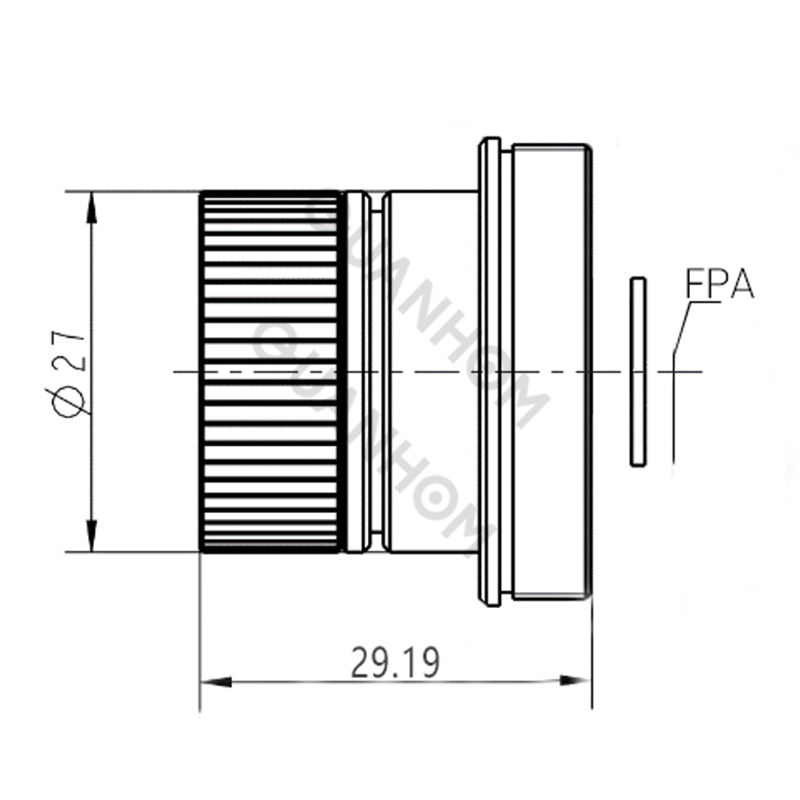

Dimensions (mm)

 Ø27×29.19

Weight

46.2g

Environmental

Sealing

IP67

Operating Temperature

-40°C to +60°C

External Coating

AR

infrared-lens-GLA-effect
