30~150mm f/1.2 Continuous Zoom

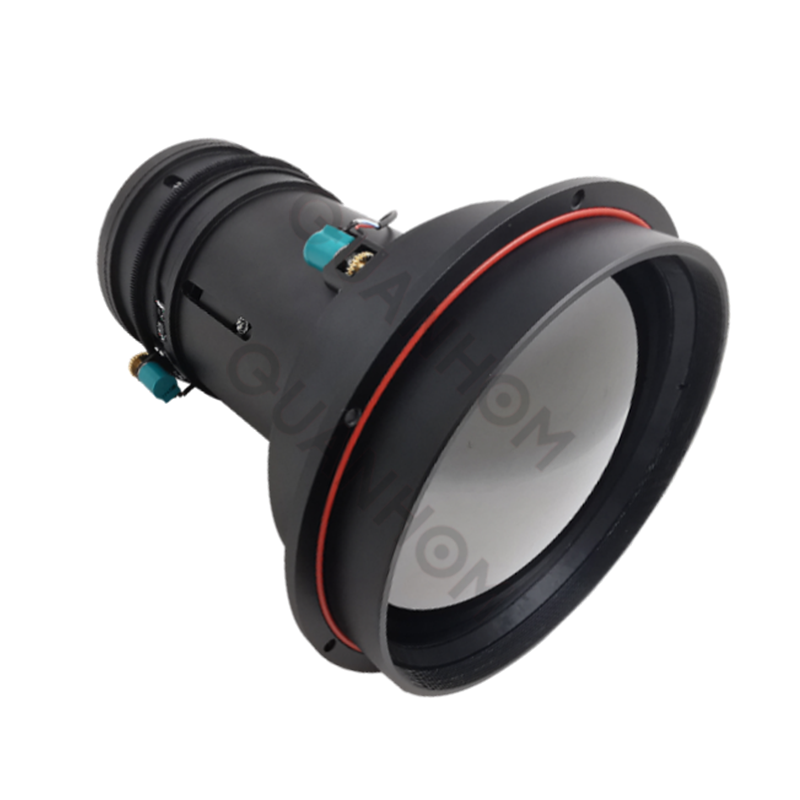

GCZ530 30~150mm f/1.2 Continuous Zoom Infrared Lens
Optical | |
Focal Length(mm) | 30-150 |
F/# | 0.85-1.2 |
Wavelength | 8-12μm |
Format | Ø21.8 |
Mechanical | |
Interface | Flange |
Focus Mechanism | Motorized |

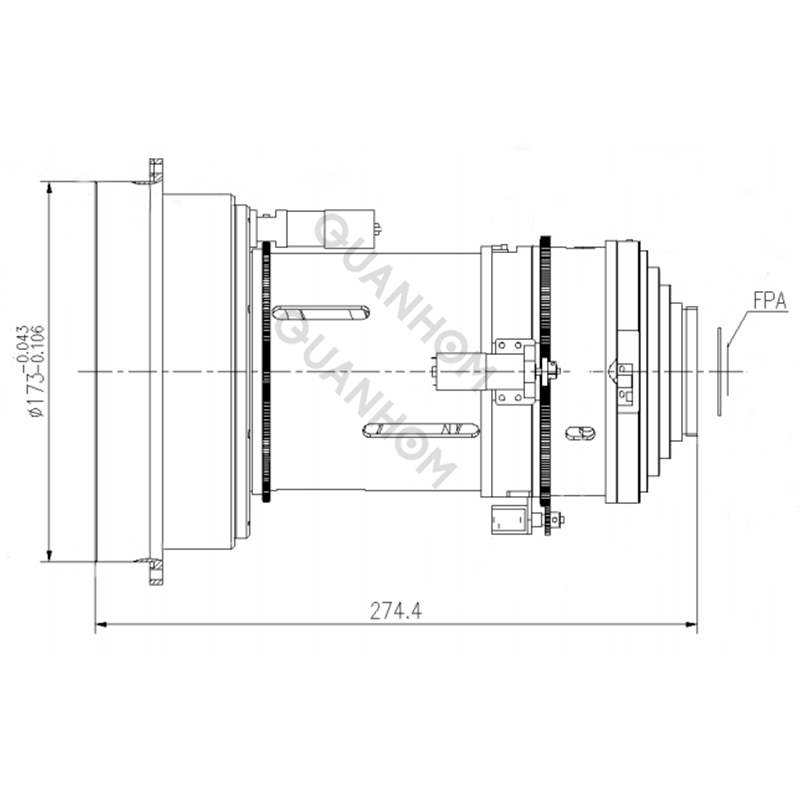

Dimensions (mm) | Ø173x 274.4(Front flange Ø178.4) |
Weight | <4.2kg |
Electrical & Communications | |
Power Input | DC12V |
Communications | NA |
Environmental | |
Operating Temperature | -40°C to +60°C |
Storage Temperature | -40°C to +80°C |
Front Element Sealing | IP67 |
External Coating | DLC |
1712 Specifications subject to change without notice
