25~225mm f/0.85-1.3 Continuous Zoom

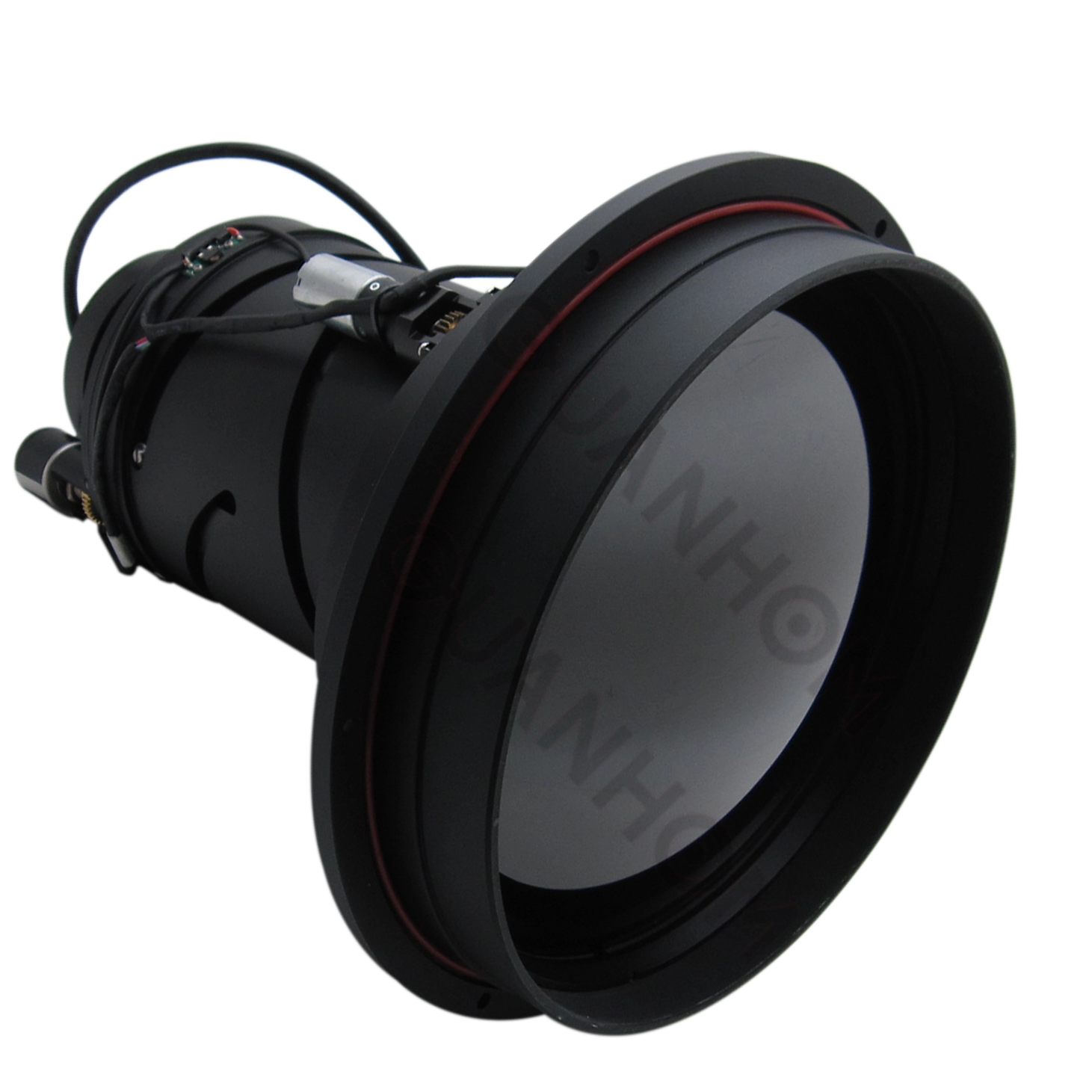

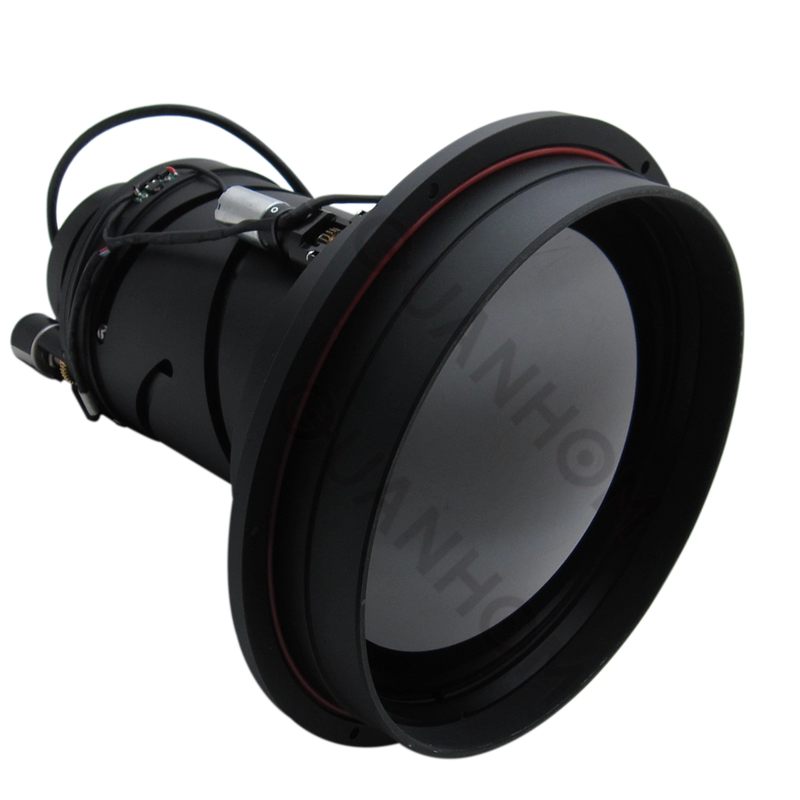

GCZ92513D 25~225mm Continuous Zoom
Infrared Lens
Optical | ||
Focal Length(mm) | 25-225mm 9X Continuous Zoom | |
F/# | 0.85-1.3 | |
Wavelength | 8-12μm | |
Focus Range | 15m-Infinity | |
Mechanical | ||
Interface | Flange | |
Focus Mechanism | Motorized | |

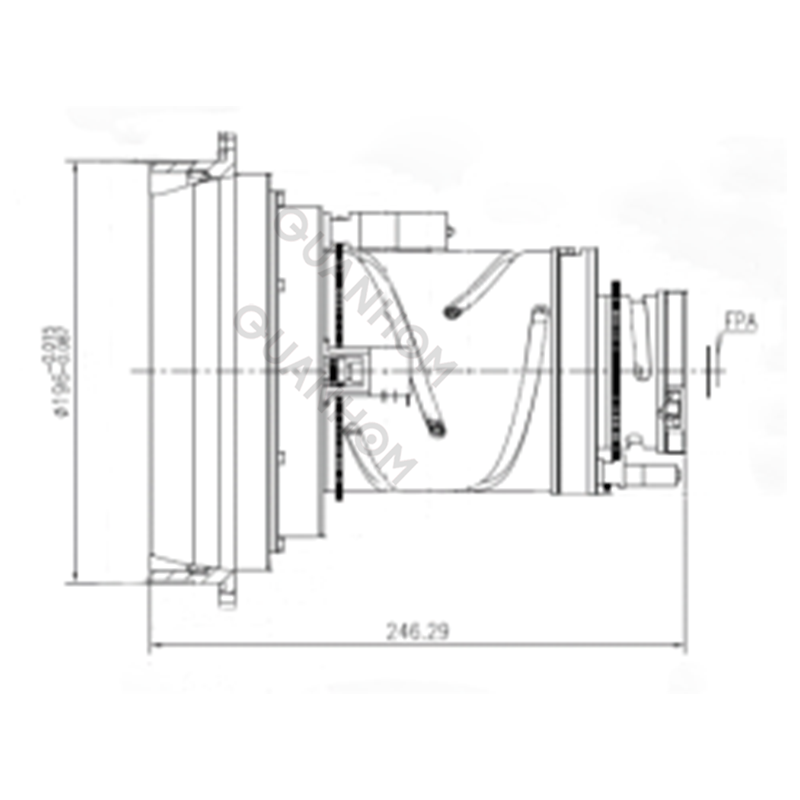

Dimensions (mm) | Ø196x246.29(Front flange Ø 220) | |
Weight | 3.95kg | |
Electrical & Communications | ||
Power Input | DC12V | |
Communications | Optional | |
Environmental | ||
Operating Temperature | -40°C to +60°C | |
Storage Temperature | -40°C to +80°C | |
Front Infrared Lens Sealing | IP67 | |
External Coating | DLC | |
Specifications subject to change without notice181010
