Continuous Zoom Lens - GCZ430105ZKD

30-120mm, f/0.92-1.05

Infrared Lens(IR Lens) - LWIR Lens -Zoom/Discrete Lens

Tel:+86(0)571-88612325 Fax:+86(0)571-88612503

E-mail:info@quanhom.com Skype: irtekz
Availability:
Quantity:
Inquire Add to Basket

  • 30-120mm, f/0.92-1.05 Continuous Zoom

GCZ430105ZKD  30-120mm f/0.92-1.05 Continuous Zoom Infrared Lens

GCZ430105ZKD-1


Optical

Focal Length(mm)

                  30-120

F/#

                 0.92-1.05

Wavelength

                 8-12μm

Focus Range

                  10m-Infinity

Mechanical
Focus Mechanism

                   Motorized

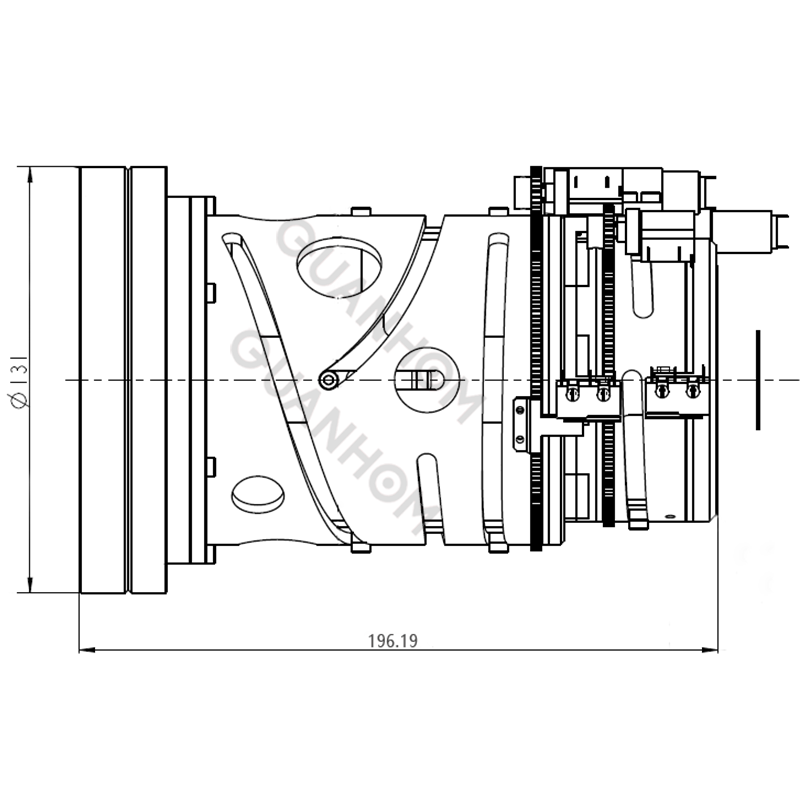

Dimensions (mm)

                    Ø131x196.19

Weight

                  23g

Electrical & Communications

Power Input

Communications

                                                   DC 12V Average

                                NA

Environmental

Operating Temperature

                   -40°C to +60°C

Storage Temperature

                   -40°C to +80°C

Front Element Sealing

                    IP67

External Coating

                    DLC

Remark:M.B.F.L: Mechanical Back Focal Length


infrared-lens-GCZ-effect
