Continuous Zoom Lens - GCZ52012K

20-100mm f/0.85-1.2

Infrared Lens(IR Lens) - LWIR Lens -Zoom/Discrete Lens

Tel:+86(0)571-88612325 Fax:+86(0)571-88612503

E-mail:info@quanhom.com Skype: irtekz
Availability:
Quantity:
Inquire Add to Basket

  • 20-100mm, f/0.85-1.2 Continuous Zoom

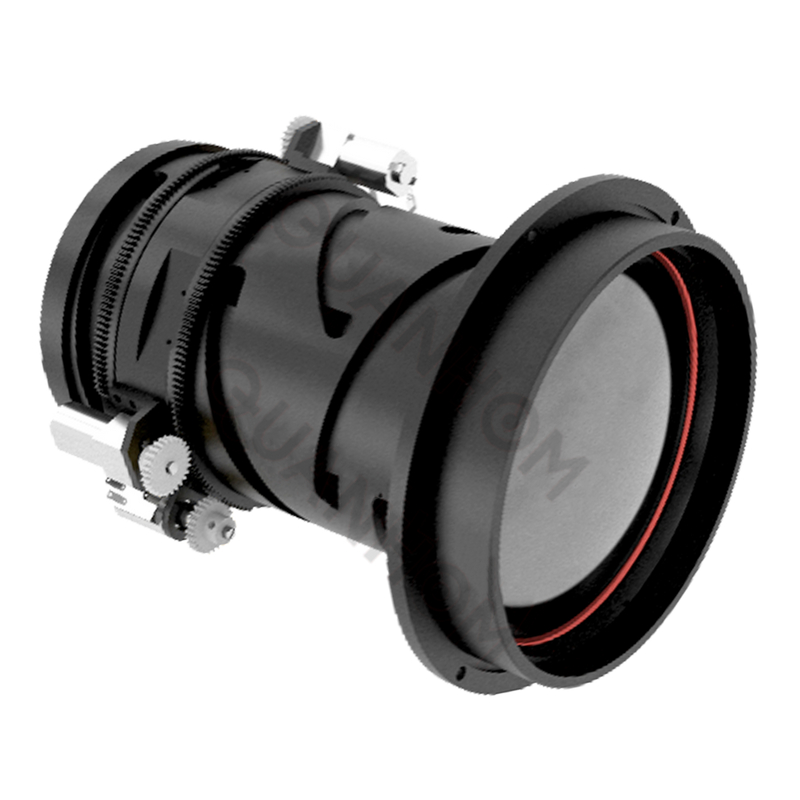

GCZ52012K  20-100mm f/0.85-1.2 Continuous Zoom Infrared Lens

GCZ52012K-1


Optical

Focal Length(mm)

                  25-100

F/#

                 0.85-1.2

Wavelength

                 8-12μm

Format

                Ø15.5

Mechanical
Focus Mechanism

                   Motorized

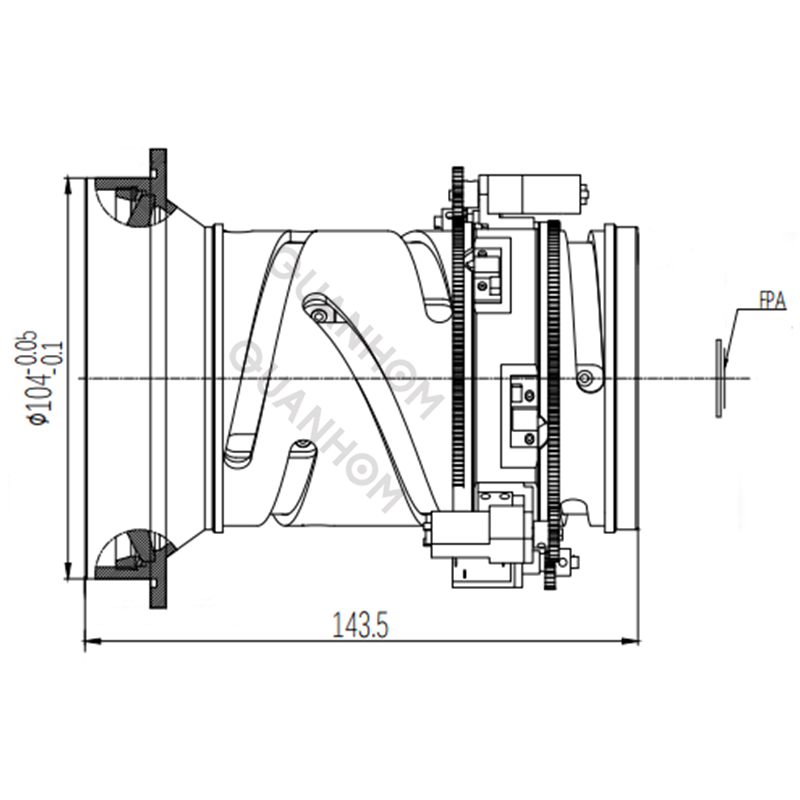

Dimensions (mm)

                     Ø104x143.5 (Front flange Ø119)

Weight

                  <1240g

Environmental

Operating Temperature

                   -40°C to +60°C

Storage Temperature

                   -40°C to +80°C

Front Element Sealing

                    IP67

External Coating

                    DLC/AR

Remark:M.B.F.L: Mechanical Back Focal Length


infrared-lens-GCZ-effect
