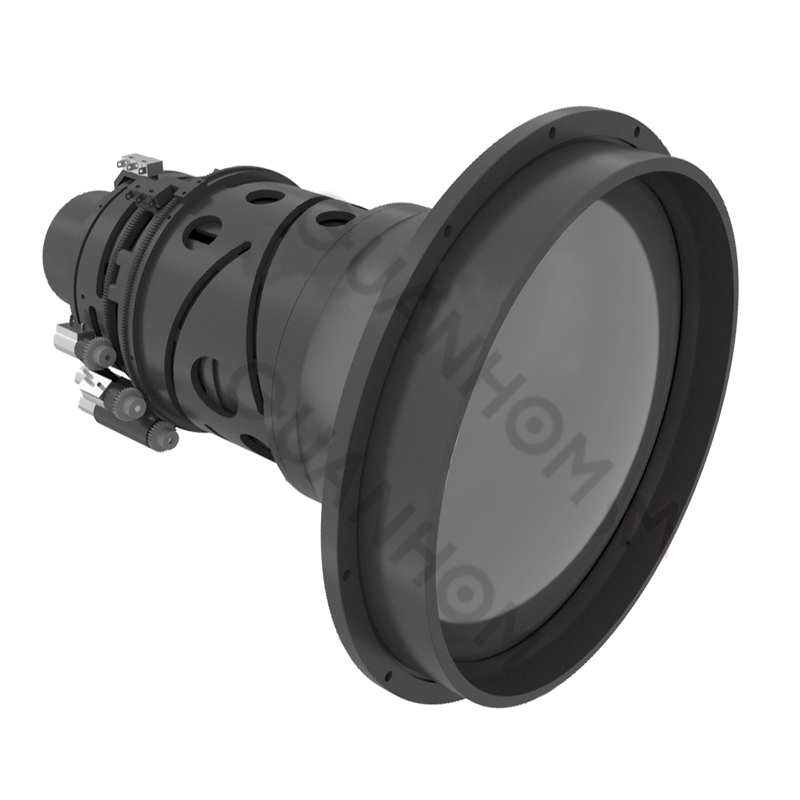

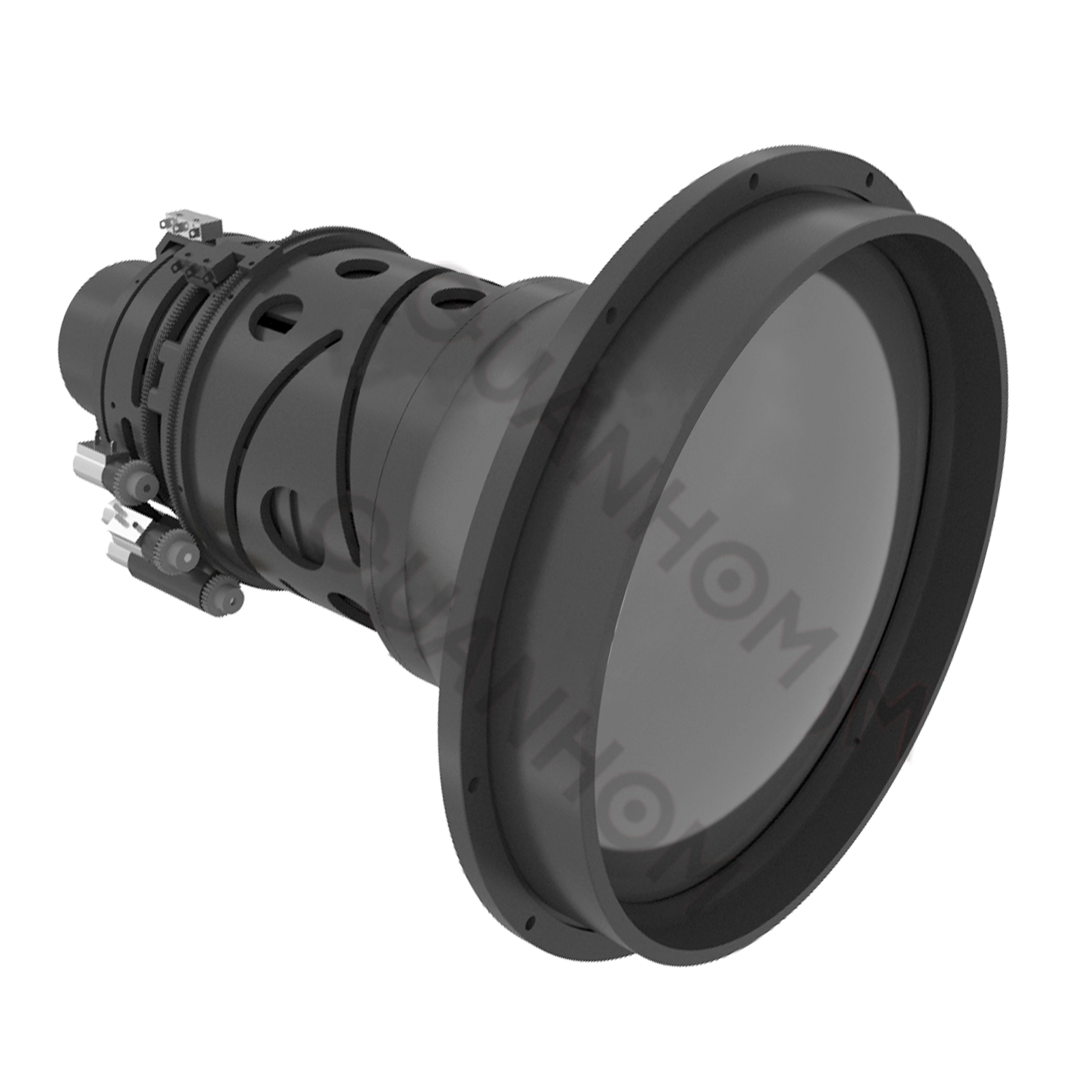

Continuous Zoom Lens - GCZ56-30014ZKD

Focal Length(mm)

                  56-300

F/#

                 1.0-1.4

Wavelength

                 8-12μm

Mechanical

Interface

Focus Mechanism

                 Flange

                                                    Motorized

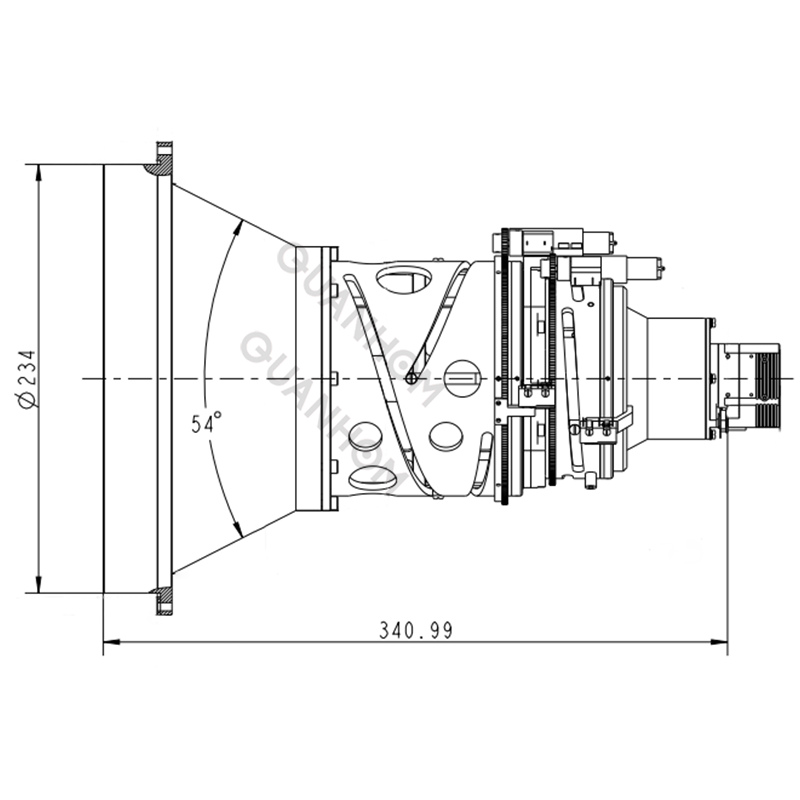

Dimensions (mm)

                     Ø234 x 340.99 (to UFPA) (Front flange Ø258)

Weight

                 <6.1kg

Electrical & Communications

Power Input

Communications

                    DC 12V Average

                                                         Optional

Environmental

Operating Temperature

                   -40°C to +60°C

Storage Temperature

                   -45°C to +65°C

Front Element Sealing

                    IP67

External Coating

                    DLC
