Continuous Zoom Lens - GCZ63012Z

30-180mm f/0.8-1.2

Infrared Lens(IR Lens) - LWIR Lens -Zoom/Discrete Lens

Tel:+86(0)571-88612325 Fax:+86(0)571-88612503

E-mail:info@quanhom.com Skype: irtekz
Availability:
Quantity:
Inquire Add to Basket

  • 30-180mm, f/0.8-1.2 Continuous Zoom

GCZ63012Z 30-180mm f/0.8-1.2 Continuous Zoom Infrared Lens

GCZ63012Z-1


Optical

Focal Length(mm)

                  30-180

F/#

                 0.85-1.2

Wavelength

                 8-12μm

Mechanical

Focus Mechanism

                Motorized

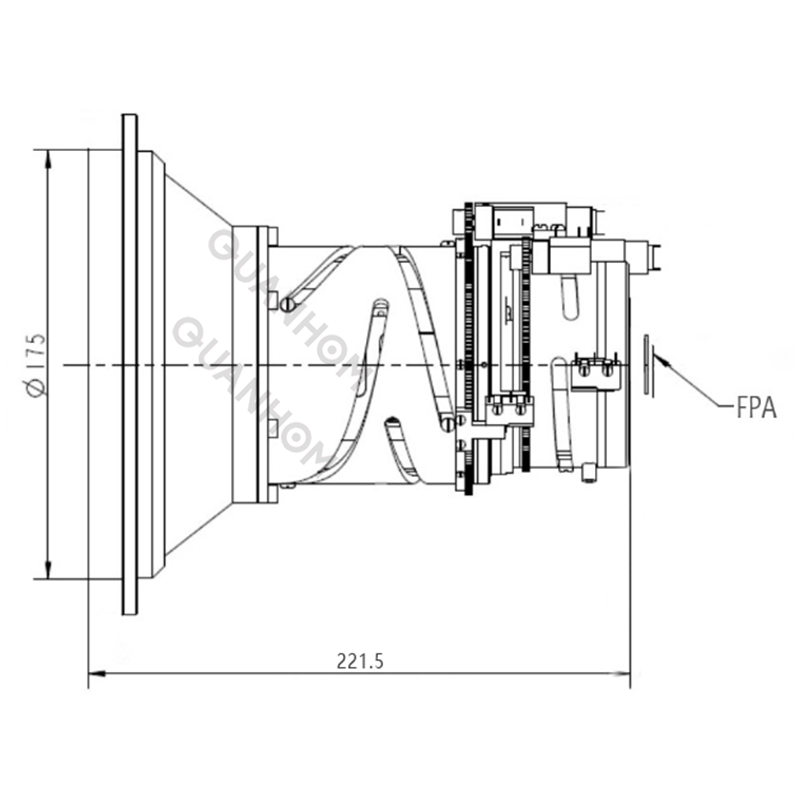

Dimensions (mm)

                     Ø175x221.5 (Front flange Ø204)

Weight

                  <2800g

Environmental

Operating Temperature

                   -40°C to +60°C

Storage Temperature

                   -45°C to +65°C

Front Element Sealing

                    IP67

External Coating

                    DLC

Remark:M.B.F.L: Mechanical Back Focal Length


infrared-lens-GCZ-effect
