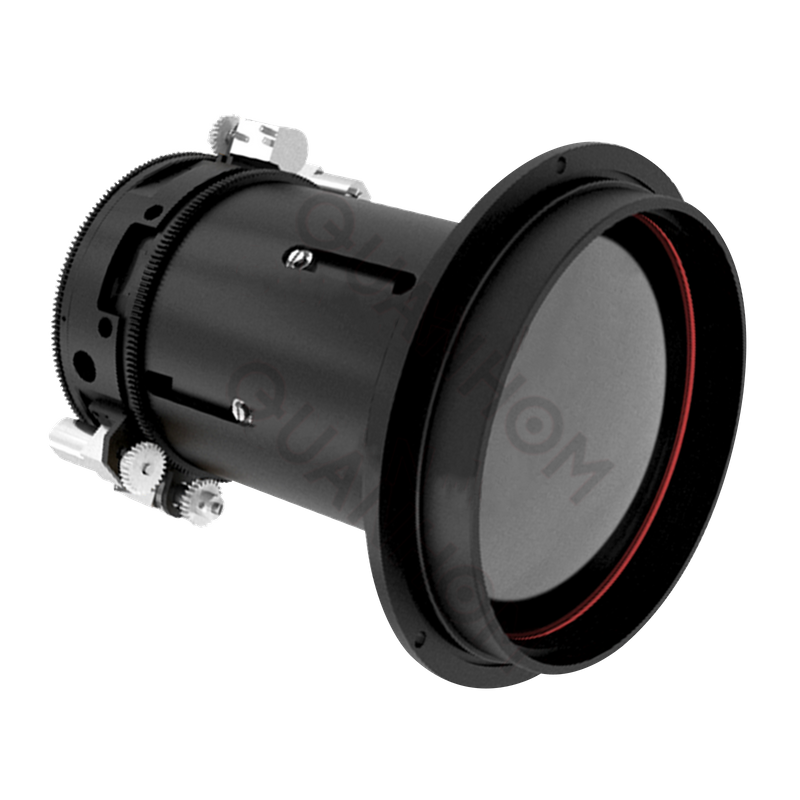

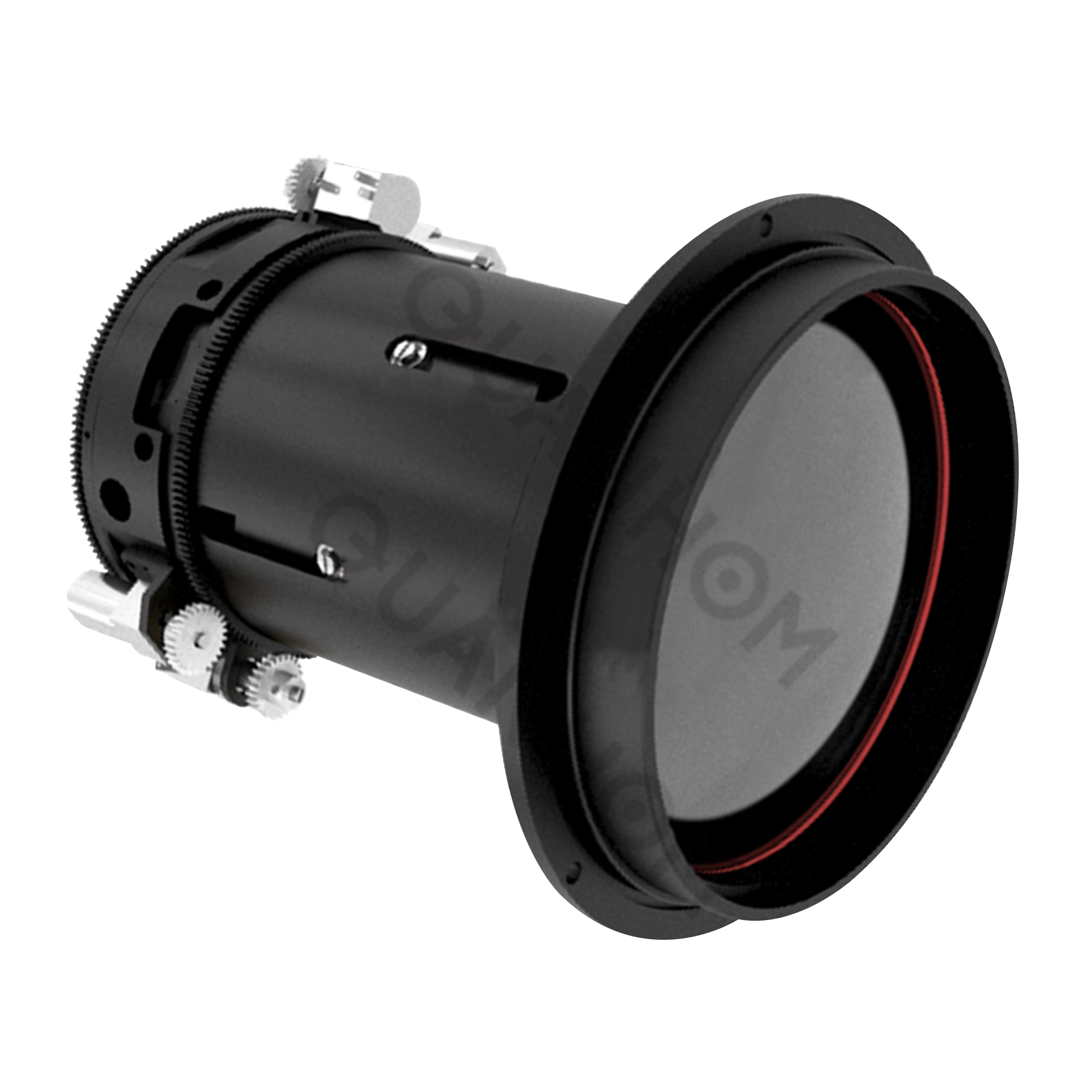

Continuous Zoom Lens - GCZ81512KD

Focal Length(mm)

                  15-120

F/#

                0.8-1.2

Wavelength

                 8-12μm

Focus Range

Format

                  3m-Infinity

                                                        Ø16.8

Mechanical

Interface

Focus Mechanism

                   Flange

                                                     Motorized

Dimensions (mm)

                     Ø258x400 (Front flange Ø286)

Weight

                  1200g

Electrical & Communications

Power Input

                   DC 12V Average

Environmental

Operating Temperature

                   -40°C to +60°C

Storage Temperature

                   -50°C to +70°C

Front Element Sealing

                    IP67

External Coating

                    DLC
