Continuous Zoom Lens - GCZ92515D

25-225mm f0.9-1.5

Infrared Lens(IR Lens) - LWIR Lens -Zoom/Discrete Lens

Tel:+86(0)571-88612325 Fax:+86(0)571-88612503

E-mail:info@quanhom.com Skype: irtekz
Availability:
Quantity:
Inquire Add to Basket

  • 25-225mm, f0.9-1.5 Continuous Zoom

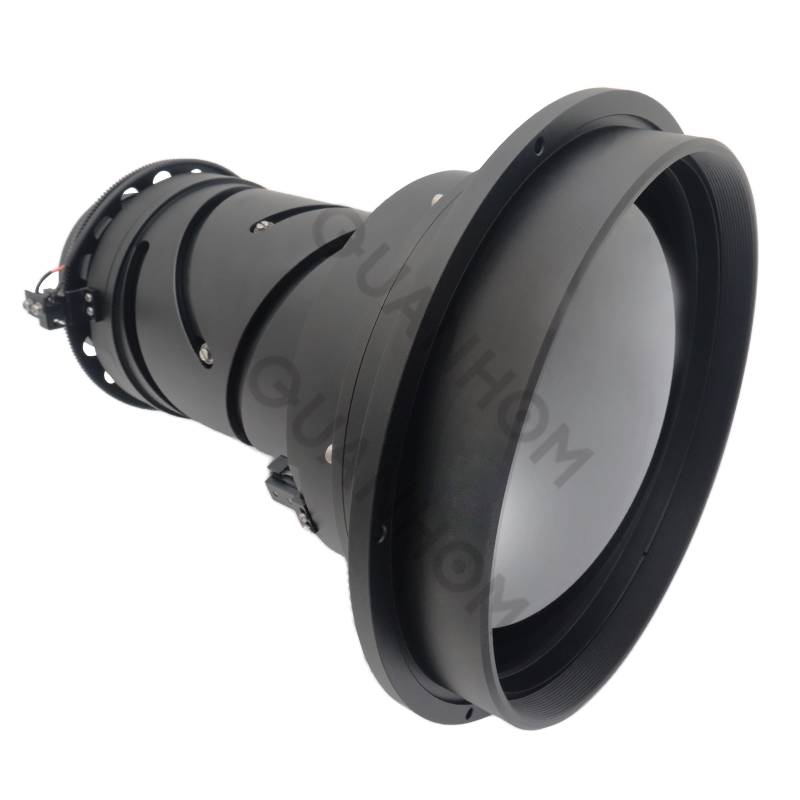

GCZ92515D  25-225mm f0.9-1.5 Continuous Zoom Infrared Lens

GCZ92515D-1


Optical

Focal Length(mm)

                  25-225

F/#

                 0.9-1.5

Wavelength

                 8-12μm

Focus Range

                  5m-Infinity/30m-Infinity

Mechanical
Interface

Focus Mechanism

                      Flange

                                                      Motorized

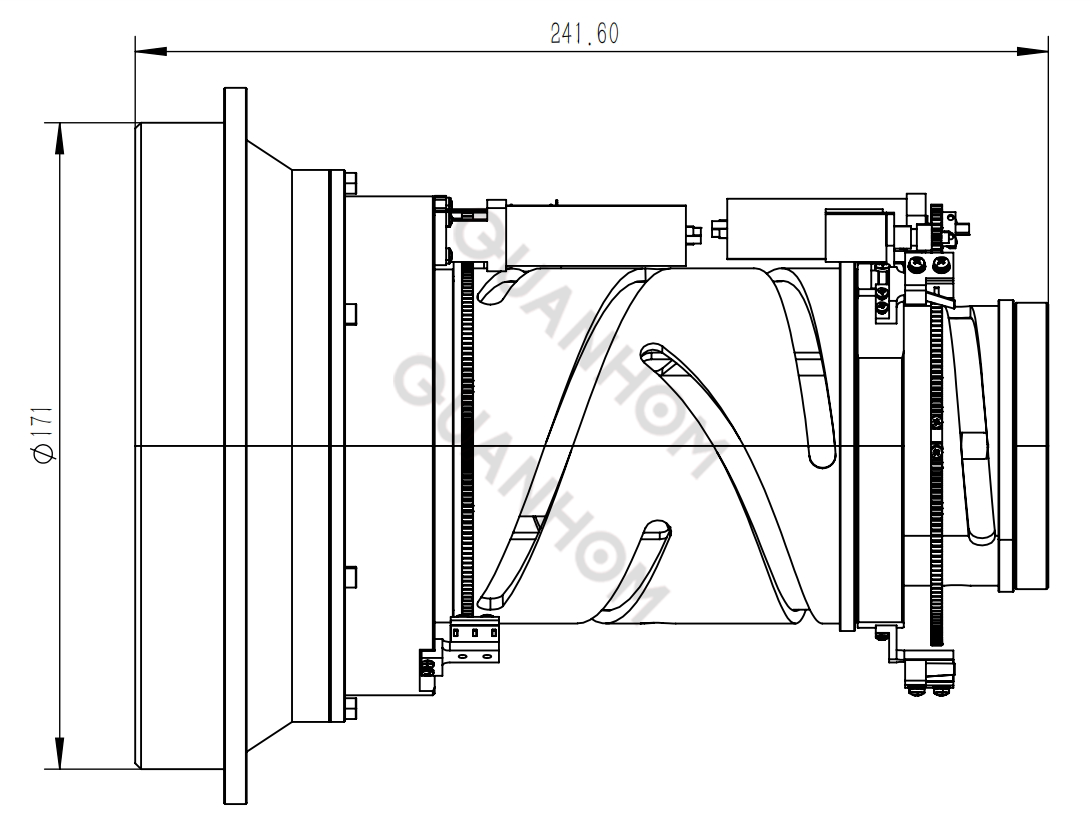

Dimensions (mm)

                     Ø171x241.6 (Front flange Ø189.5)

Weight

                  <3.0kg

Electrical & Communications

Power Input

                    DC 12V Average

Environmental

Operating Temperature

                   -40°C to +80°C

Storage Temperature

                   -60°C to +85°C

Front Element Sealing

                    IP67

External Coating

                    DLC

Remark:M.B.F.L: Mechanical Back Focal Length


infrared-lens-GCZ-effect
